Custom Copper Stamping Parts: 7 Key Considerations from Material Selection to Mass Production

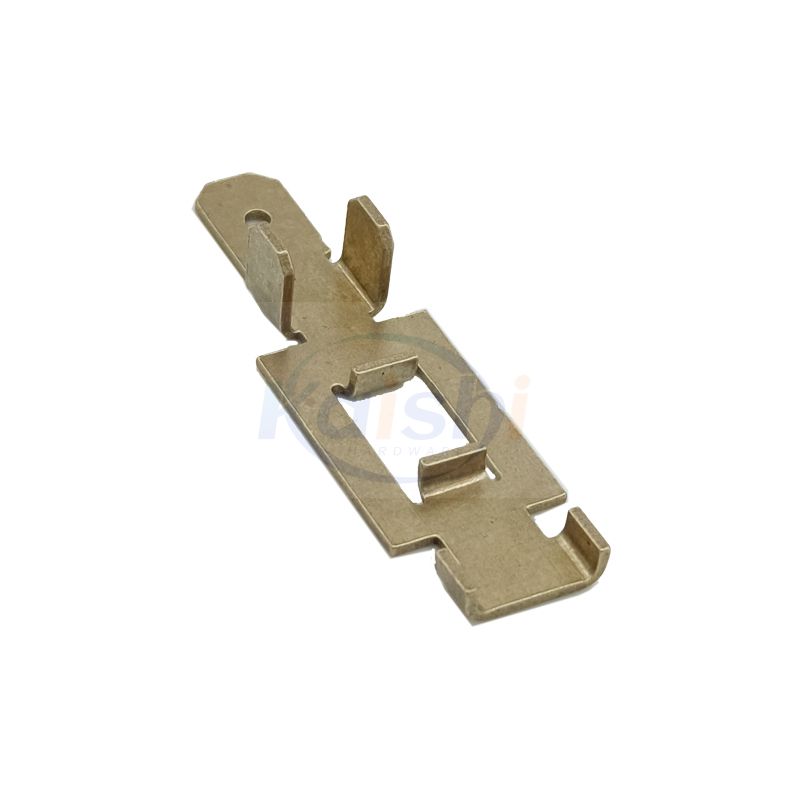

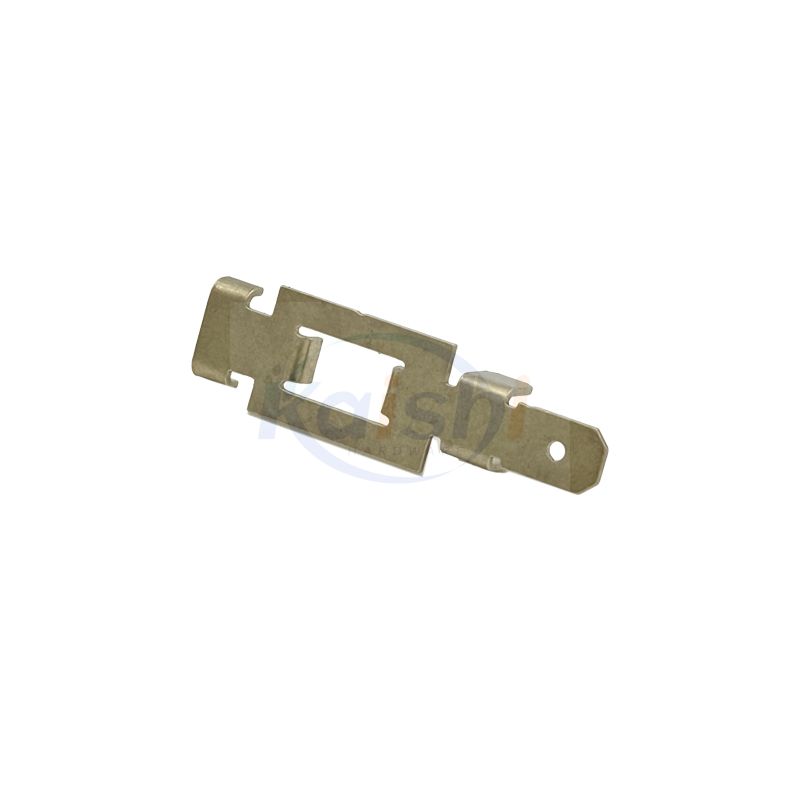

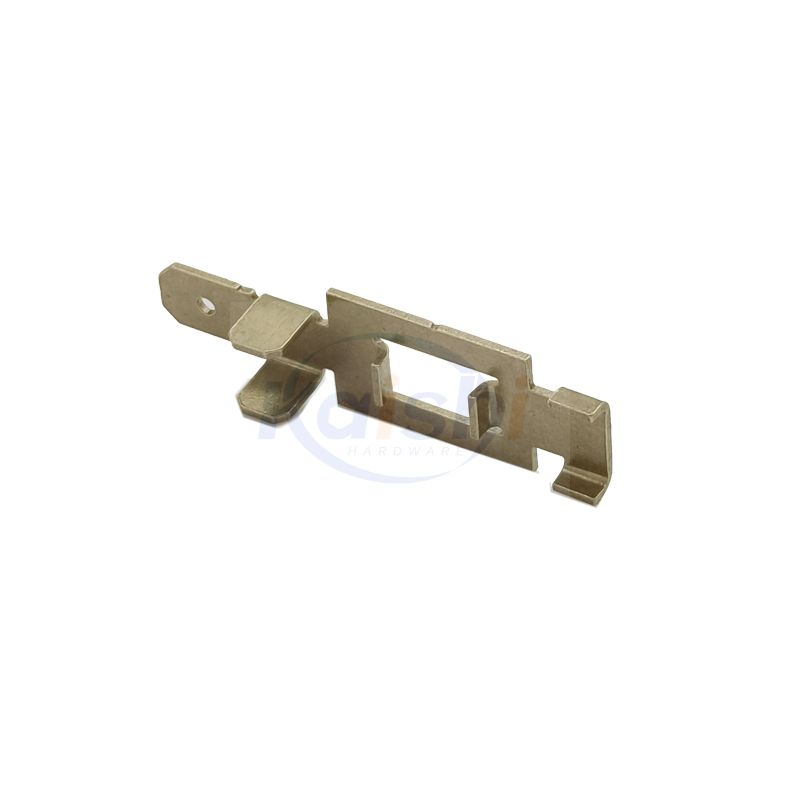

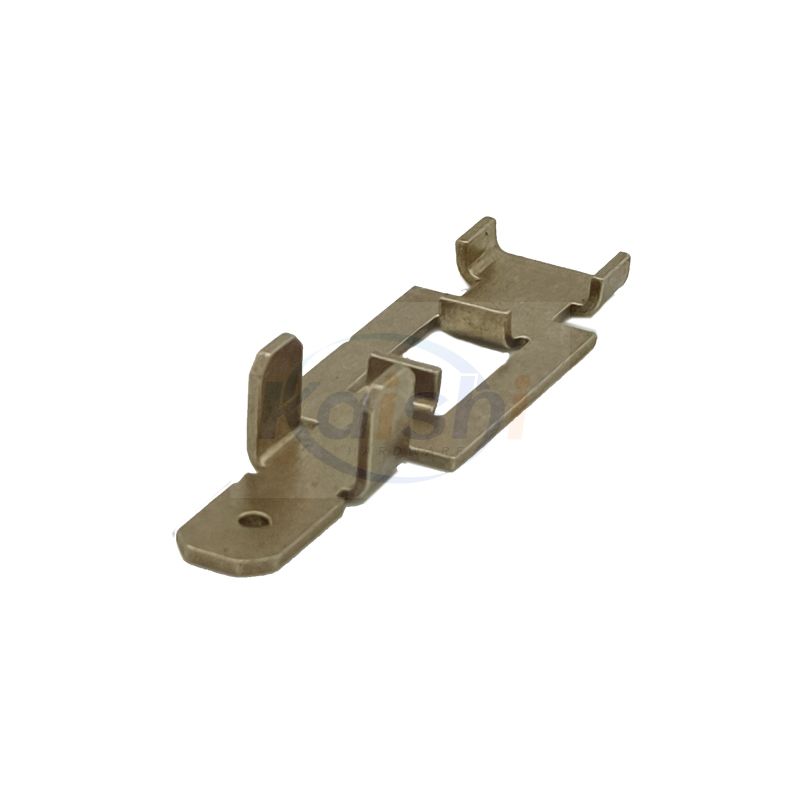

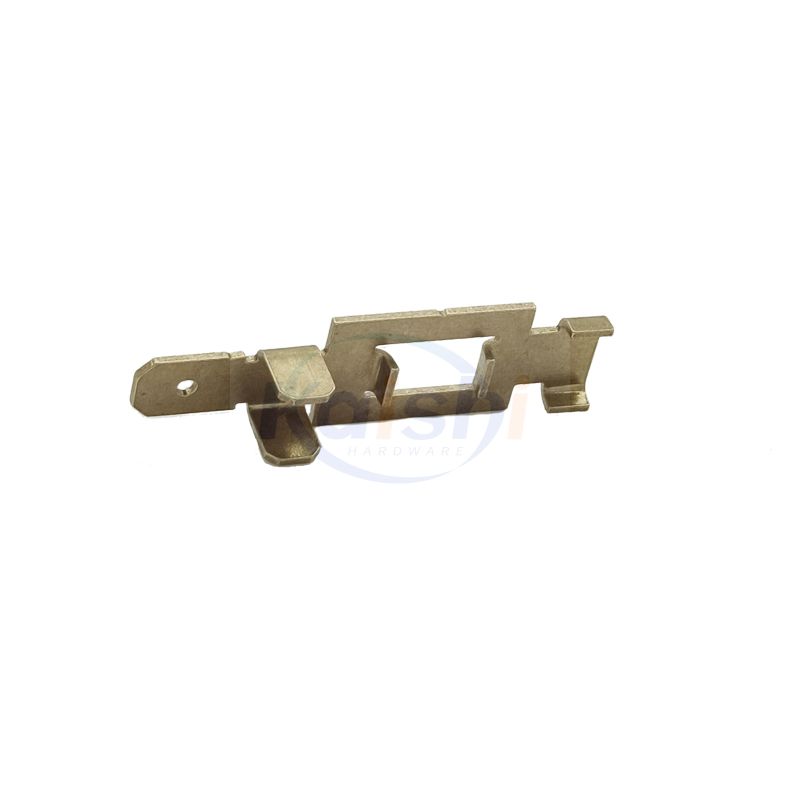

Copper and copper alloys are widely used in connector terminals, relay springs, EMI shielding cans, heat sinks, and new-energy battery busbars thanks to their excellent electrical and thermal conductivity, corrosion resistance, and ductility.

But copper behaves very differently from steel on the press. It is soft, prone to galling, easily oxidized, and has significant springback. These four characteristics mean your design, tooling, and finishing decisions must be made differently from the start.

Below are the seven points we walk through with every customer before a copper stamping program goes into production.

1. Material Selection: Define the Grade, Then the Temper

Choosing the wrong alloy turns every downstream step into damage control. The most common grades and where they fit:

The detail most drawings miss:​ every grade is also supplied in a temper — annealed/soft (M), half-hard (Y2), hard (Y), or spring/extra-hard (T). Harder tempers spring back more and form less readily; softer tempers stretch easily but leave the part under-strength. For spring components, specify the full process route, including post-forming aging or annealing.

2. Design for Manufacturability: Let the Process Set the Limits

Copper flows readily under load, which changes the usual design rules:

• Minimum hole diameter:​ ≥1.0× material thickness, and no less than 0.4 mm. Keep hole-to-hole and hole-to-edge distances at ≥1.5× thickness to avoid tearing and hole distortion.

• Bend radii:​ inside radius ≥0.5t (t = material thickness). Pure copper can go tighter; hard brass and beryllium copper need larger radii or the outer surface will crack.

• Springback compensation:​ copper springs back more than steel. Allow 2°–5° of overbend, and build compensation into the die for U-shaped and Z-shaped forms.

• Avoid long, narrow cantilevers and sharp corners:​ copper parts have low rigidity and distort easily during handling and plating.

• Specify burr direction and height:​ note the allowable burr height (typically ≤0.05 mm) and orientation on the drawing. This directly affects assembly fit and electrical contact reliability.

3. Tooling and Process Control: Burr Control Comes First

Because copper is soft and highly ductile, blanking tends to produce pronounced burrs and die roll​ — the single most common quality issue in copper stamping.

• Cutting clearance:​ typically 5%–8% of material thickness per side (versus 8%–12% for steel). Use the lower value for pure copper, the higher value for harder alloys. Too much clearance pulls long burrs; too little accelerates punch wear.

• Tool steel:​ SKD11 or a higher-grade powder metallurgy high-speed steel, with shortened regrinding intervals to keep cutting edges sharp.

• Lubrication:​ use a dedicated volatile stamping oil that is strictly free of sulfur and chlorine. Copper is extremely sensitive to sulfur; residue causes blackening and can embrittle the part.

• Tooling format:​ for medium to high volumes, progressive dies with piloted strip guidance significantly improve consistency and lower unit cost.

4. Heat Treatment and Stress Relief

Deep drawing over multiple operations or heavy deformation work-hardens copper, so intermediate annealing​ is required — preferably bright or vacuum annealing to prevent surface oxidation. Elastic components such as beryllium copper reeds need solution treatment plus aging​ to reach final mechanical properties. Lock down temperature, soak time, and protective atmosphere in the process documentation.

5. Surface Finishing: Preventing Tarnish Matters More Than Looks

Copper darkens quickly in air and blackens rapidly in sulfur-containing environments, so surface treatment is almost always mandatory:

• Tin plating:​ improves solderability at low cost; the standard choice for connectors. Watch for tin whiskers — matte tin or a nickel underlayer mitigates the risk.

• Nickel plating:​ hard, wear- and corrosion-resistant; suited to mating/contact surfaces subject to friction.

• Silver plating:​ highest conductivity for high-current contacts, though susceptible to sulfide tarnishing.

• Passivation / anti-tarnish treatment:​ the lowest-cost basic protection, suitable for internal components with no cosmetic requirement.

Plating adds thickness. For precision parts, always state on the drawing whether dimensions are before or after plating.

6. Tolerances and Inspection

Standard stamping tolerances fall in the IT10–IT12 range; high-precision terminals can be held to ±0.02 mm. Recommended inspection methods: vision measuring systems for planar dimensions, profile projectors for contours and angles, and force/contact-resistance testing for spring-type parts. Build first-article full dimensional reports plus in-production AQL sampling​ into the purchase agreement.

7. Commercial Alignment: Quoting and Sampling

• Copper price linkage:​ copper fluctuates significantly. Quotes should state the base copper price date and validity period; for large programs, agree on a price adjustment mechanism.

• Always sample first:​ springback and burr formation in copper cannot be fully predicted by simulation alone. Validate with soft tooling or prototype dies, confirm dimensions and spring force, then commit to production tooling.

• Provide complete information:​ drawings (including tolerances, burr limits, surface finish, and performance requirements), material certification requirements, monthly volume, and packaging method (sulfur-free paper, vacuum packing, or desiccant recommended). The more complete the RFQ package, the more accurate the quote and the more reliable the lead time.

In short:​ successful custom copper stamping comes down to four things — selecting the right material temper, controlling blanking burrs, compensating for forming springback, and specifying adequate surface protection.​ Get these four into the drawing and the process file, and production stability is largely secured.
