How to Custom Metal Stampings: A Complete Process Guide

How to Custom Metal Stampings: A Complete Process Guide

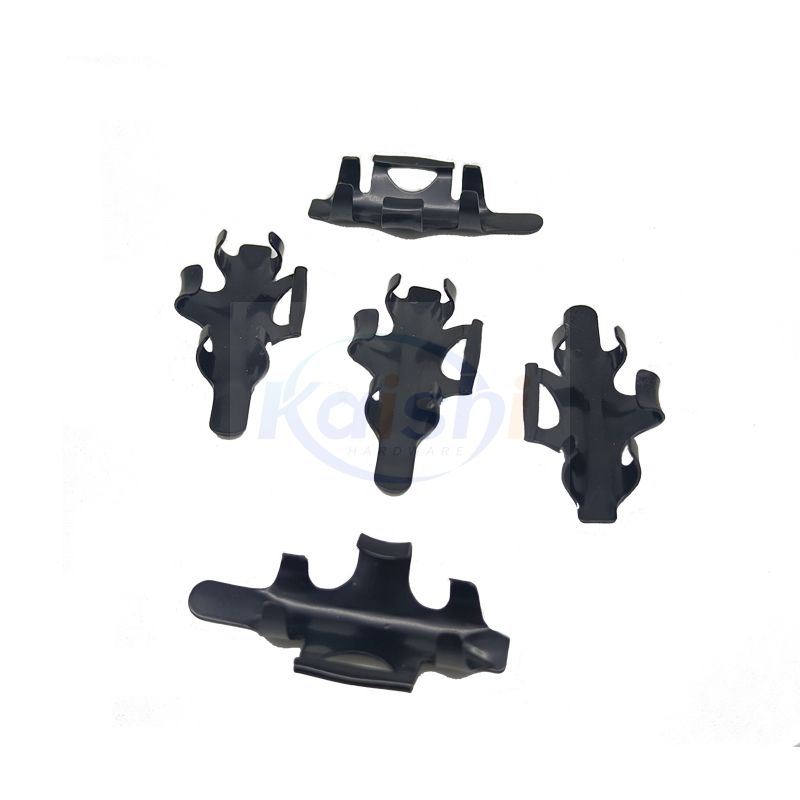

Custom metal stamping is a manufacturing process that transforms flat metal sheets into specific shapes through a series of precise operations. Understanding this process helps ensure your project runs smoothly, from initial design to final delivery.

Step One: Product Design and Engineering Review

The process begins with your product design. You will need to provide detailed drawings, either 2D engineering files or 3D models, along with clear specifications for material, dimensions, and tolerances.

Once received, a reputable supplier will conduct a Design for Manufacturability analysis. This critical step evaluates whether your design is suitable for stamping. For example, the supplier may suggest optimizing features such as overly small corner radii or excessively deep draw structures. These adjustments help prevent common production issues like cracking, wrinkling, or springback.

Step Two: Tooling Design and Fabrication

Tooling, often called a die, is the heart of stamping. It determines the accuracy and consistency of every part you produce. For high-volume production, manufacturers typically use progressive dies. A progressive die integrates multiple operations—such as punching, blanking, and bending—into a single toolset. As the metal strip moves through the die, it completes one operation with each advancement, making the process highly efficient.

The die itself is machined from high-strength, wear-resistant tool steels to ensure a long production life. Its components are fabricated using precision methods like slow wire electrical discharge machining or electrical discharge machining, achieving accuracy down to the micron level.

Step Three: Sample Production and Validation

Before moving to mass production, a small quantity of samples is produced using the newly fabricated die. These samples undergo rigorous inspection with high-precision measurement equipment to verify that every critical dimension meets the drawing requirements.

Only after you have reviewed and formally approved the samples does the project proceed. This validation step is essential to prevent costly rework caused by undetected tooling issues.

Step Four: High-Volume Production

Once sample approval is secured, the project moves into full-scale production. Stamping is performed on presses with appropriate tonnage. Depending on part complexity, stamping speeds can be very fast. Your supplier will provide an estimated lead time based on your order quantity.

Step Five: Post-Processing and Quality Inspection

Raw stamped parts typically require additional finishing. The first step is deburring—removing sharp edges created during stamping—using methods like barrel tumbling or mechanical brushing.

Next, parts receive surface treatment based on their intended application. Common options include:

• Electroplating (zinc, nickel, or chromium) to enhance corrosion resistance

• Anodizing for aluminum parts, creating a hard, protective layer

• Powder coating or spray painting for color and added protection

After finishing, every shipment undergoes comprehensive final quality inspection. A detailed inspection report accompanies the delivered parts, ensuring full compliance with your specifications.

Important Considerations Before You Start

Cost Structure: Because tooling fabrication requires significant upfront investment, custom stamping is most economical for high-volume production. Producing just a few samples results in a very high per-part cost. However, for orders of hundreds of thousands of pieces, the tooling cost is distributed across the entire batch, making each part very affordable.

Selecting a Supplier: Look for manufacturers with established quality management system certifications. More importantly, an experienced supplier does more than just build dies—they provide professional guidance during the design phase. Their early input often reduces overall cost and shortens time to market by optimizing part geometry for the stamping process.
