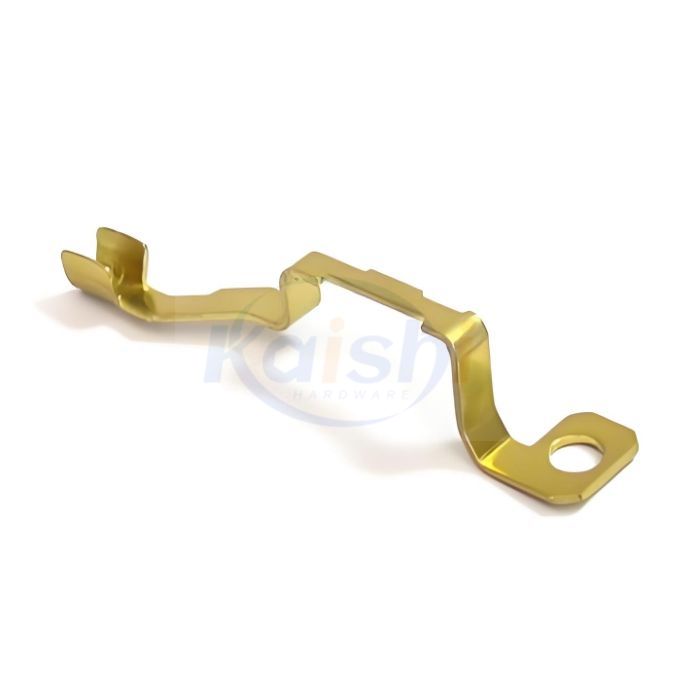

Let’s start with a frequently asked question.

Many first-time clients ask, "How much does this part cost?" Honestly, it is impossible to provide a responsible figure within five minutes. Hardware components are not off-the-shelf items; their price is embedded in the manufacturing process. For the exact same shape, the unit cost can vary several-fold depending on whether laser cutting or progressive die stamping is used. The choice of method depends on annual volume, tolerance requirements, and surface finishing specifications.

We specialize in custom manufacturing based on drawings or samples; we do not carry our own standard product line. Below, I outline the process we have refined over twenty years. This will help you prepare the necessary information before requesting a quote and clarify what actually happens at each stage.

I. Drawings and Samples: Gathering the Necessary Information

A comprehensive information package that enables an accurate quote typically includes: a 3D CAD model (STEP or IGES formats preferred); a 2D engineering drawing specifying dimensions, geometric tolerances, material grades, and general tolerance standards; and a physical sample (it is common for clients to have a reference part but lack the original drawing, in which case we perform reverse engineering). We also need surface finish color swatches or codes and salt spray test duration requirements, as well as annual usage and batch size figures—these two numbers directly determine whether we use stamping dies or laser processing.

The most common issues are clients providing only a visual rendering, or a 3D model without a 2D drawing. Renderings cannot be used for manufacturing; we would have to reverse-engineer the design based on experience. The time cost of the subsequent back-and-forth confirmation is far higher than simply providing a proper drawing at the start.

II. Manufacturability Review: Assessing Feasibility Before Quoting

Once the information is complete, our tooling and process engineers review the drawings together. This step is known as DFM (Design for Manufacturability). We evaluate whether the structure can be consistently produced using current processes and look for more cost-effective alternatives.

Here is a common example: a stamped part features a 3mm diameter hole located just 2mm from a bend line. While it is possible to draw this, in actual production, the hole would deform during the bending process, compromising its roundness. We would suggest either moving the hole further away or adding an extra step to bend the part before punching the hole. Other similar examples include deep-drawn parts requiring a bottom corner radius of R0.5, narrow slots with widths smaller than the sheet thickness, or bending operations in different directions that interfere with one another. If these issues are raised during the review stage, a simple drawing revision suffices; however, modifying the tooling after it has been manufactured incurs costs of tens of thousands of yuan and delays of several weeks.

The review stage also determines the manufacturing process route: blanking plus bending versus laser cutting plus bending; whether to use a progressive die; the welding method; and the surface treatment. This route dictates the subsequent cost structure—tooling cost amortization, labor hours per unit, material utilization rates, and processing fees all stem from these decisions.

III. Tooling Development and Trial Runs

For projects requiring new tooling, the timeline from design to the T1 trial run typically ranges from 15 to 35 days, with complex progressive dies taking longer. During the design phase, we provide strip layouts and process sheets for customer approval, focusing on product datums, burr orientation, and forming methods for critical dimensions. Once these are finalized, the tooling is built accordingly; subsequent changes are extremely costly.

The first part produced during the T1 trial run is not necessarily a conforming part. Trial parts undergo full-dimensional inspection using CMM (Coordinate Measuring Machine) or 2D vision systems, alongside checks for cut-edge quality, burr height, and post-springback angles. Most projects require adjustments after the T1 run—such as correcting angle springback, fixing hole position deviations (e.g., 0.1 mm), or addressing surface scoring—all of which are handled via tooling modifications rather than changes to the product design.

IV. First Article Confirmation and Small-Batch Production

The dimensional report (FAI) and physical samples are submitted to the customer for assembly verification. We strongly recommend actually performing the assembly rather than relying solely on the dimensional report, as many assembly issues cannot be detected through dimensional data alone.

Small-batch production typically involves 50 to 300 units and serves to validate the entire manufacturing process chain. Issues often surface during this stage—such as marks left by plating/coating racks, clogged threaded holes, or deformation of thin-walled parts after coating. Resolving these "pitfalls" ensures a high yield rate during mass production.

V. Mass Production Relies on Process Control, Not Sorting

Transitioning to mass production relies on establishing inspection frequencies and locking in process parameters. For stamped parts, we conduct first-article inspections and in-process checks every shift, applying SPC to critical dimensions; for welded parts, consistency is ensured through the use of jigs and fixtures; and for surface treatments, we retain test coupons from each batch for random inspections regarding salt spray resistance and coating thickness. We are fully prepared to provide PPAP documentation packages as well as RoHS and REACH reports upon customer request.

Taking a brand-new project from blueprints to mass production and delivery typically takes four to five weeks under smooth conditions, or around two months for complex parts. The bulk of the time is dedicated to tooling and validation; it is precisely these preliminary stages that determine the stability of subsequent volume supplies.
