Why Are Drawn Parts Prone to Cracking? A Comprehensive Guide from Process Principles to Design Essentials

Why Are Drawn Parts Prone to Cracking? A Comprehensive Guide from Process Principles to Design Essentials

In custom metal fabrication, deep drawing is one of those processes that "looks simple but is difficult to execute perfectly." Clients often bring drawings of drawn parts and ask, "Why did the previous factory only achieve a 60% yield rate?" or "Why do price quotes for the same drawing vary by as much as 100% between factories?" To answer these questions, one must first understand the fundamentals of the deep drawing process.

The basic principle involves placing a flat blank between a die cavity and a blank holder; a punch then moves downward, drawing the material into the die cavity to form a hollow part. Throughout this process, the material undergoes both stretching and compression: the material at the bottom remains largely undeformed, the sidewall material stretches and thins, and the flange area (the ring of material yet to enter the die cavity) is subjected to tangential compression. This complex stress state makes deep drawing a process extremely sensitive to operational parameters.

Cracking is the most common failure mode. There are several typical causes: First, the drawing ratio is too high—meaning the ratio of the part's depth to its diameter exceeds the material's limits. Generally, the limiting drawing ratio for low-carbon steel is around 2.0, while for stainless steel, it is lower, typically between 1.6 and 1.8. Exceeding this limit necessitates multiple drawing stages, with intermediate annealing steps to restore the material's ductility. Second, the die's corner radius is too small, causing excessive bending stress as the material flows through, which leads to rupture. Third, inadequate lubrication results in high resistance to material flow and localized stress concentrations. Fourth, material quality issues—such as uneven grain structure or excessive inclusions—impair drawing performance.

Wrinkling is another common issue. It primarily occurs in the flange area, where tangential compressive stress causes the material to become unstable and wrinkle. The solution is to increase the blank-holding force; however, excessive force raises the risk of cracking, so a balance must be struck. Sometimes, anti-wrinkle beads are designed into the die to assist with control.

Uneven thinning also affects product quality. The wall thickness of a drawn part naturally decreases from the bottom to the opening; if the process design is flawed, excessive thinning in certain areas can lead to insufficient strength or poor surface appearance. Control is primarily achieved by optimizing the punch-die clearance, drawing speed, and blank holder force.

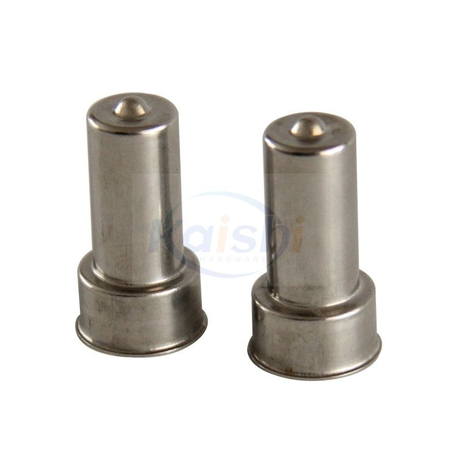

There are several rules of thumb to consider when designing drawn parts. The bottom corner radius should be as large as possible—ideally 3 to 5 times the material thickness—as a radius that is too small leads to severe stress concentration at the corner. If the design permits, a draft angle of 1° to 3° on the sidewalls facilitates part ejection. For stepped drawn parts, avoid excessive diameter changes between stages to prevent deformation levels from exceeding limits. Intermediate annealing is essential for parts requiring multiple drawing stages; this step must not be skipped simply to meet a schedule.

Regarding material selection, materials with good deep-drawing properties typically feature high elongation, a low yield-to-tensile ratio, and a moderate work-hardening exponent. Common choices include SPCC (cold-rolled carbon steel), SUS304 (stainless steel), and aluminum alloys such as 1060 and 5052. While 304 stainless steel has good drawing characteristics, it work-hardens rapidly, necessitating intermediate annealing during multi-stage drawing. Copper offers excellent drawing properties and is suitable for complex, deep-drawn shapes, though it comes at a higher cost.

In addition to standard dimensional checks, inspecting wall thickness distribution is crucial for drawn parts. Ultrasonic thickness gauges can be used for spot checks at critical locations to ensure the minimum thickness meets design specifications. Visual inspection is also vital; drawn parts are prone to defects such as scratches, indentations, and "orange peel" textures, all of which are influenced by the condition of the die surface, lubrication, and the quality of the raw material surface.
