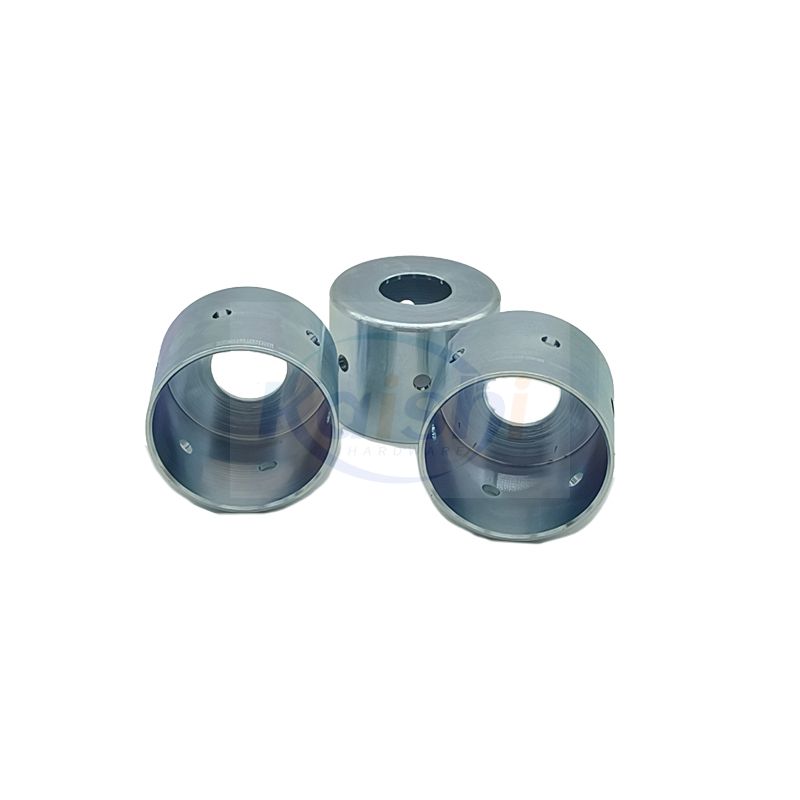

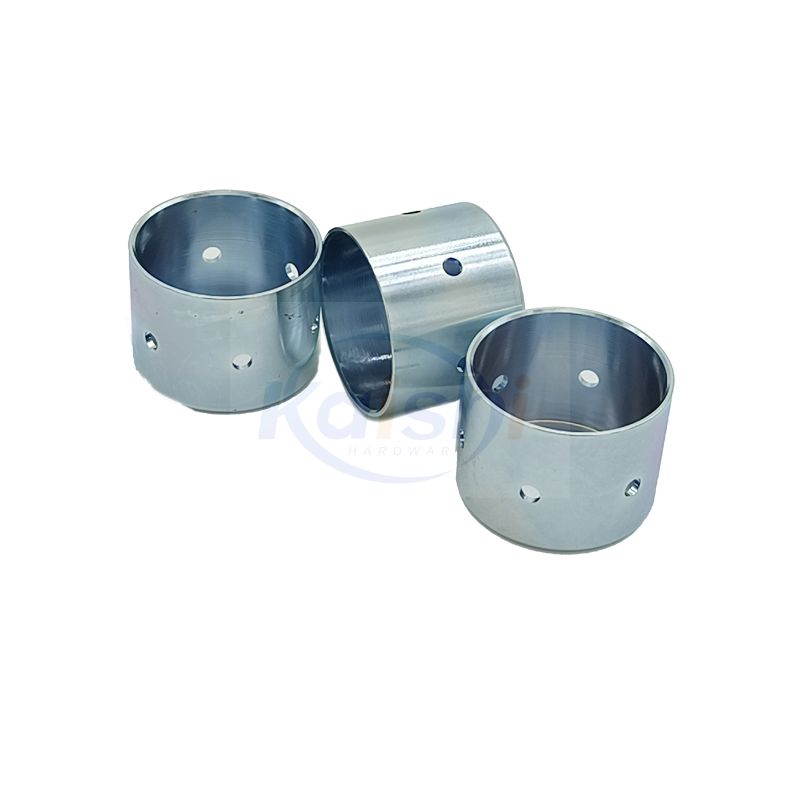

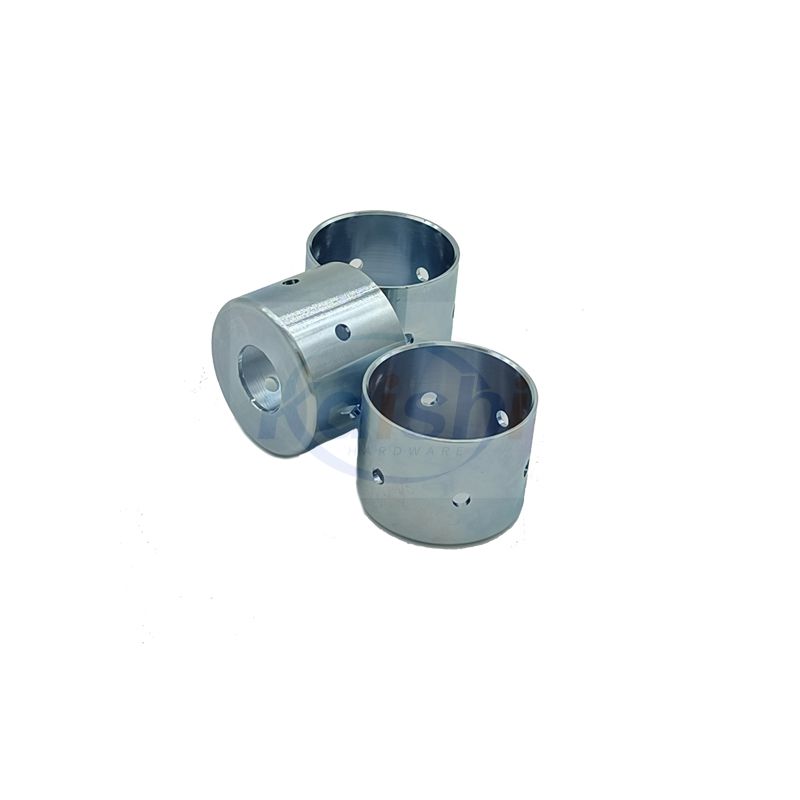

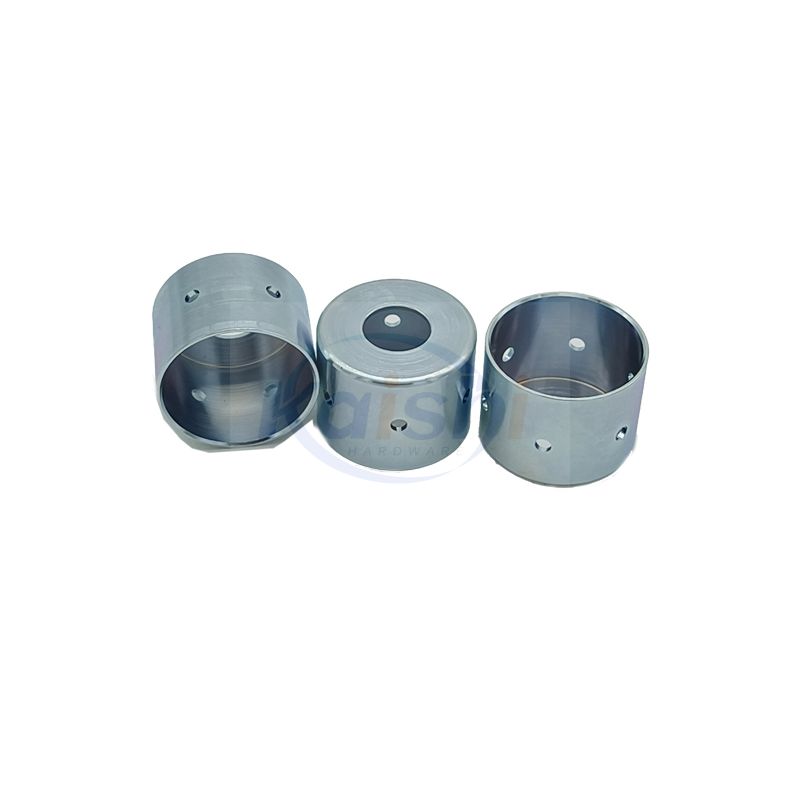

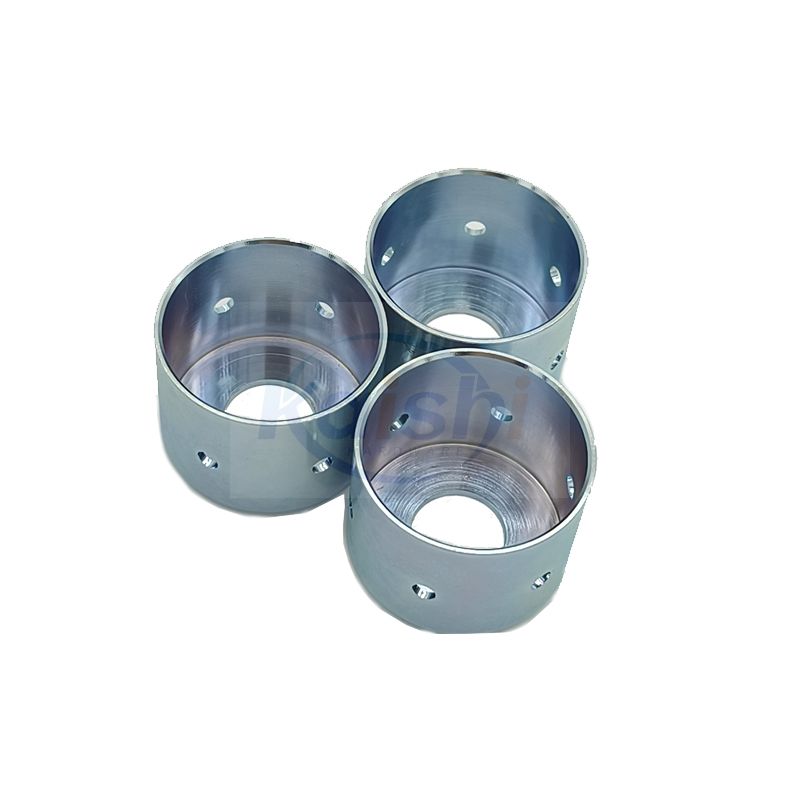

Custom Precision Metal Deep-Drawn, Stamped, and Galvanized Parts from China

Deep Drawing: Turning a Flat Blank into a Precision Shell

What Is Deep Drawing?

Deep drawing is one of the core processes in sheet metal stamping. In simple terms, a flat metal blank is placed over a die cavity, its edge held by a blank holder, and then pressed downward by a punch. Constrained by the tooling, the sheet undergoes plastic flow and gradually "grows" into a seamless hollow component.

From stainless steel sinks and vacuum flask liners to automotive body panels, battery steel cans, and home appliance housings, a large number of the one-piece metal shells around you are produced by deep drawing.

Why Choose Deep Drawing?

• One-piece construction, no welds.​ The entire shell is formed from a single blank, with no seams or weld points, delivering sealing performance and structural integrity far superior to fabricated and welded assemblies.

• High material utilization.​ As a plastic forming process, it generates virtually no chips, saving substantial raw material compared with machining.

• Dimensional stability and consistency.​ Once the tooling is qualified, dimensional tolerances remain tightly controlled across high-volume production runs.

• Excellent surface quality.​ The forming process preserves the original surface of the sheet, so finishes such as brushed or mirror polish are carried through intact.

• Efficiency with cost control.​ Combined with multi-station or progressive dies, multiple forming operations can be completed in a single press stroke, making the process well suited to high-volume delivery.

Where Does the Difficulty Lie?

The essence of deep drawing is "making metal flow the way you want it to." Insufficient blank holder force causes wrinkling at the flange; excessive tensile stress leads to fracture at the bottom radius. Wall-thickness reduction, drawing ratio, die and punch corner radii, lubrication, and the material's own properties—yield-to-tensile ratio, strain-hardening exponent, and plastic strain ratio—all influence yield rate.

This is precisely where an experienced manufacturer adds value: forming simulation to predict material flow in advance, servo press technology for precise control of blank holder force and stroke profile, and the right combination of multi-stage drawing, intermediate annealing, and ironing, so that deeper, thinner, and more complex parts are produced right the first time.
